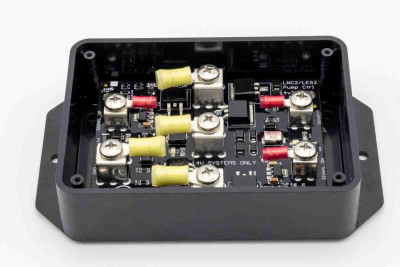

A complete, reliable, drop-in replacement for the landing gear hydraulic pump circuitry.
The Gear Controller replaces two intermittent duty starter solenoids, flyback diodes, Gear-In-Transit diodes, and all associated interconnects using the interfaces already present in the stock hydraulic system.
Features:
- Solid state. No mechanical moving parts, no intermittent duty coil to accidentally burn up
- Low switching current (200mA). Compatible with either stock or aftermarket solid state pressure switches
Graceful startup and shutdown of the hydraulic pump.- Inputs have a 20 ms delay, which eliminates start-stop-start from bouncing mechanical switch inputs;
- Motor outputs have robust flyback diode protection, which snubs voltage spikes on motor shutdown
- Lightweight. The Gear Controller is half the weight of a single solenoid, and has a much smaller footprint than the stock system
- Complete transit light solution. Wire your transit light straight from the board--overcurrent protection built in (automatically resetting, 500mA max)
- EMI protection. The circuit has high resistance to radiated and conducted emissions
$695, available to order here (also more info): https://www.gabrielenterpris.es
Thanks for looking!
